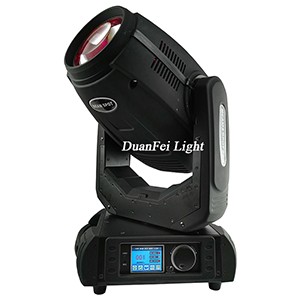

Description
Voltage: AC100-240V，50/60Hz
Power Dissipation：420W
Lamp: 280W 10R ( Color temperature: 9300K)
Channel mode:16/24 DMX512 Channel
Pan scan：540°(16bit) Electric correction
Tilt scan： 270° (16bit) Electric correction
Color wheel: one color wheel, 14 kinds of color chips in one color wheel
Gobo: 1 static gobo wheel with 14 gobos, 1 rotate gobo wheel with 8 gobos
Effect Wheel: Rotation 8-facet prism, 6-facet linear prism effect move , frost
0-100% mechanical dimming, mechanical dimming and free dimming available.
Strobe macro control available.
Lens optical system achanical fouce .
Beam angle 3.8～45°
Over heat protection
IP level :IP20
Weight:19kg
Dimension:386x365x589mm
Packing size:460x400x660mm
